Introduction

This application note demonstrates modelling of high power shielded cables in EMC Studio Hybrid Analysis Type. Multicore shielded cable with braided shield in car body is considered.

---

Simulation Model Description

Noise coupled from high power shielded cable to neighbour single cable is analyzed in frequency range from 1 MHz to 80 MHz. Main part of cable bundle is routed under the car chassis.

---

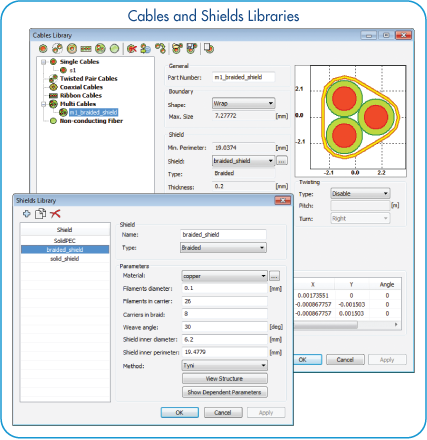

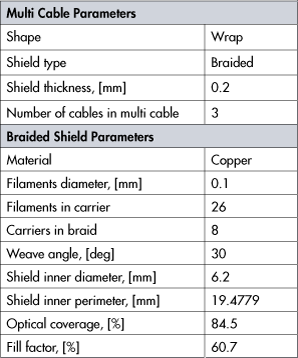

Definition of single and shielded multicore cables parameters are performed in Cables Library:

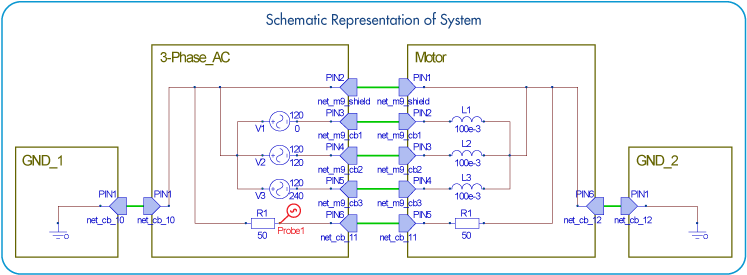

High power shielded cable connects “3-Phase_AC” generator model with “Motor”. Grounding is provided at both sides via additional grounding wires. Single cable is terminated with 50 Ohm loads.

---

Results

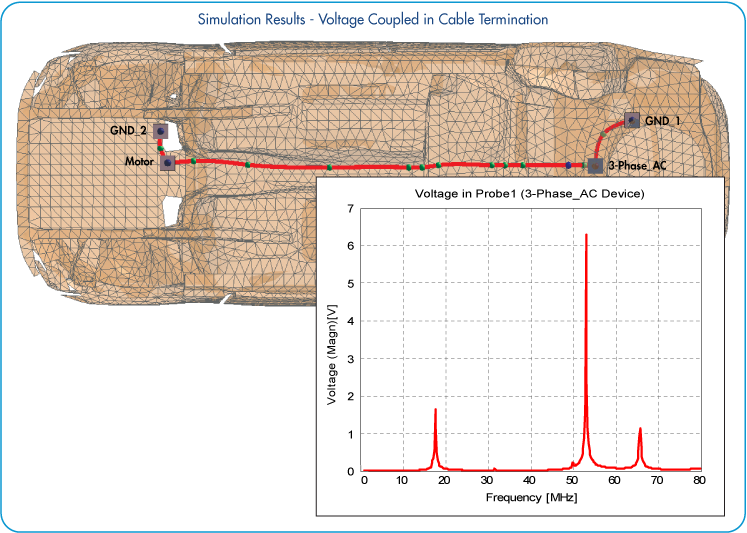

Voltage coupled from high power shielded cable to neighbour cable is considered.
