  • Yagi-Uda Antenna on Naval Ship


    Investigation of optimal antenna position, analysis of near/far fields generated by antennas placed on large structures (like ships, aircrafts, etc.) plays important role in onboard antennas design and installation. This application demonstrates analysis of Yagi-Uda antenna placed on naval ship simulated at 200 MHz frequency.

    Simulation Model Description

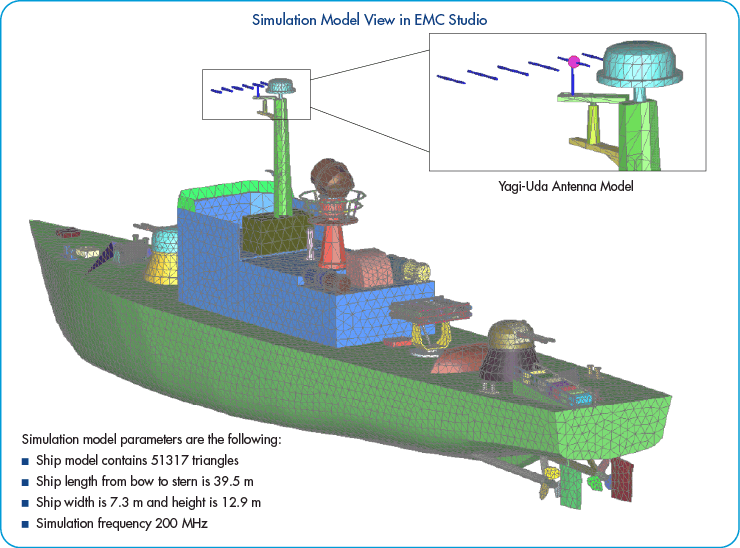

    Yagi Uda on Naval Ship

    Design of Yagi-Uda Antenna

    Design of Yagi-Uda Antenna

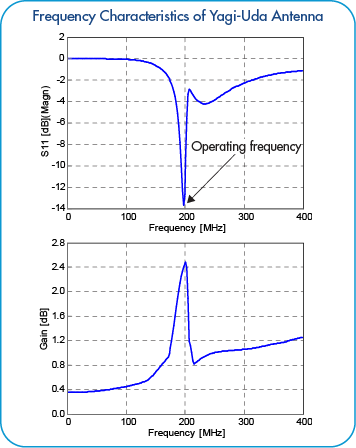

    Frequency Characteristics of Yagi-Uda Antenna

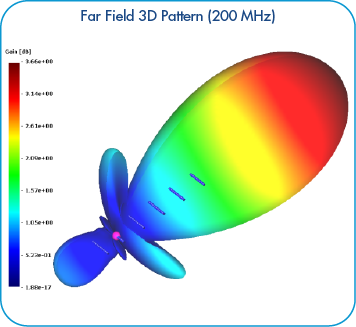

    Uda Yagi 3D Far Field 200MHz

    Yagi Uda Antenna Frequency Characteristics

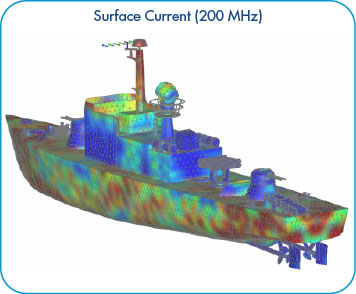

    Uda Yagi on Naval Ship Surface Current 200MHz

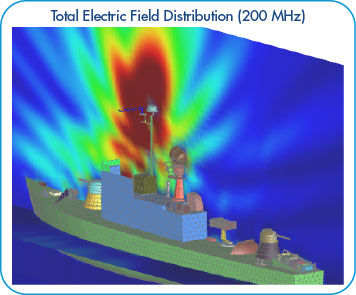

    Uda Yagi on Ship E Filed Distribution

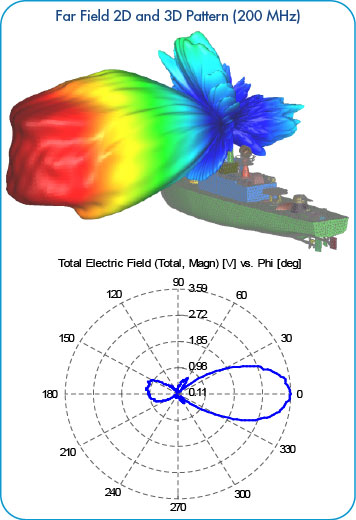

    Uda Yagi 3D Far Field 200MHz
