Trapezoidal Tooth Log-periodic Antenna
Model Description
This example considers trapezoidal tooth log periodic antenna. On each arm, antenna has 22 teeth, alternating from side to side of the constant-width feed line. Frequency range: 300 MHz – 800 MHz. Solution is obtained by Method of Moments (MoM) in EM Analysis Type.
Top View
Side View

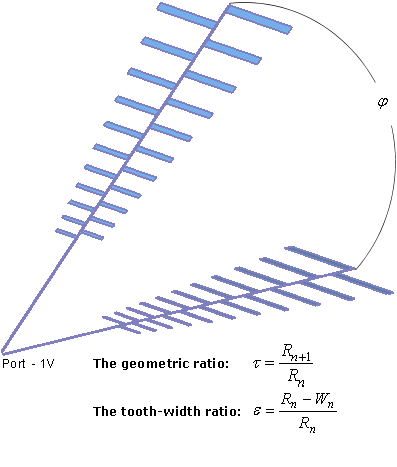

The geometric ratio and the tooth-width ratio are selected as
= 0.95 and
= 0.98, where
is the distance between the source location and the nth tooth, while
is the width of the n-th tooth. The angle
is 15
. So that the arms expand from the source location with an angle of 30 and the teeth are attached to the center strips with constant widths. For this no planar design, the angle between the two arms is 45.
Simulation Results

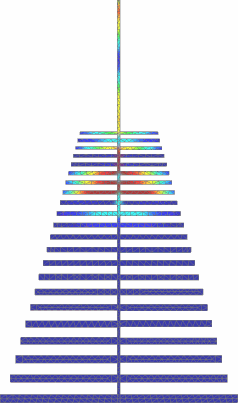

Current Distribution (550 MHz)
