Vivaldi Antenna
Model Description
This example demonstrates Vivaldi antenna analysis. The Vivaldi antenna, also known as the tapered slot antenna, has been noted for its wide-band impedance performance. Permittivity of the dielectric substrate – 2.32. Frequency range: 500 MHz – 10 GHz.

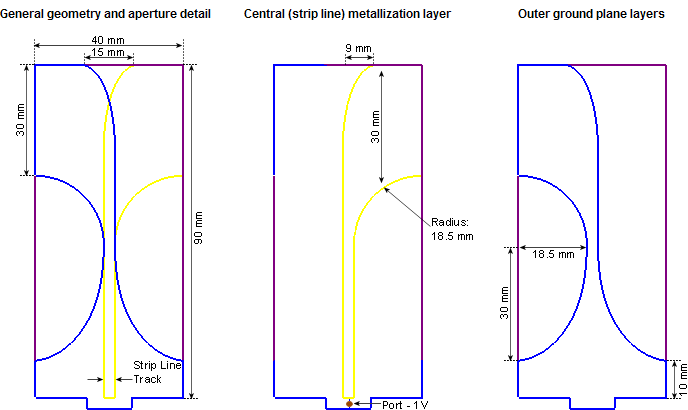

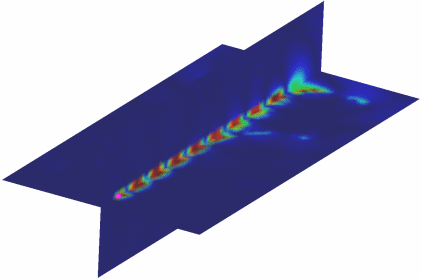

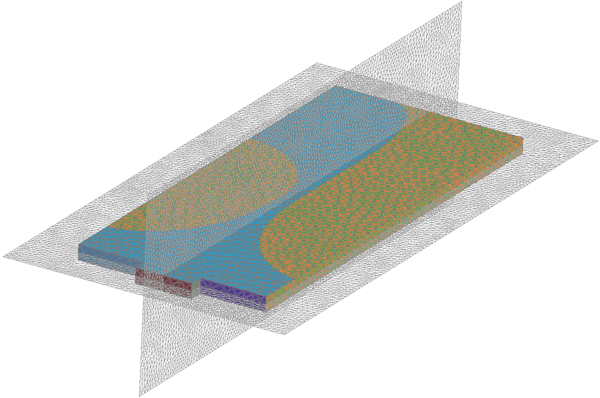

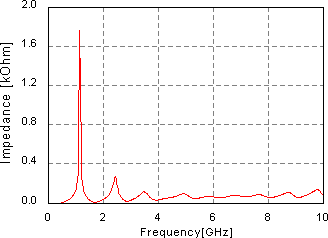

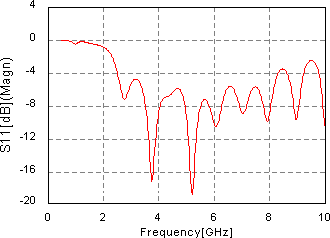

Simulation Results Input Impedance Reflection Coefficient (S11) 3D Far Field Pattern (8 GHz) Total Electric Field (10 GHz)
