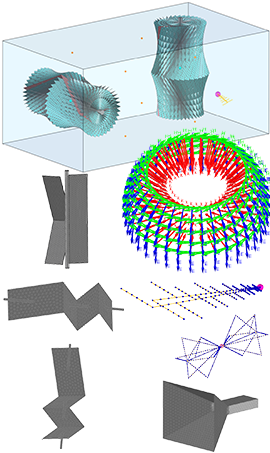

New EMCoS ReverSIM

(Reverberation Chambers Specialized Solution)

• New ReverSIM Solver and Calculation Mode in EMCoS Studio EM Analysis Type
• Automated Generation of Computational Tasks for All Stirrer Positions and Configurations in Chamber with Antenna
• TriD Full-Wave MoM Solver with Fast Direct Solution (FDS) and Matrix Partitioning Technique
• Chamber Definition Modes: Rectangular Cavity & Custom Geometry
• Stirrer Positions Generation Based on RPM, Rotation Center and Axis with Preview Mode
• Plane Waves Superposition Mode
• Frequency List Generation Compliant with IEC 61000-4-21 Standard
• Frequency Splitting for Distributed Calculations with Automatic Generation of Multiple Task Folders Based on Pre-defined Number of Frequencies
• Automatic Generation of Statistical Outputs (Field Anisotropy, Field Inhomogeneity, Field Uniformity, Normalized E Fields, Power and Q Factors) Based on IEC 61000-4-21 Standard

New Features in Hybrid MTL/3D PEEC Solver

• Enhanced Efficiency and Performance with New In-Memory Solution
• Full-Wave Interaction Support between Branches in Partial Elements (FAS) Solution
• Extended for EMC Analysis Capabilities of Cable Harness and Antenna Systems
• Automated Generation of Frequency-Dependent RLCG Matrix across the Entire Simulation Frequency Range
• Dynamic Result Update during Frequency Sweeps for Faster Analysis Feedback

New Features in EMCoS RapidTL for Arbitrary Cables Modeling

EMCoS RapidTL and Global Library

• Project Tree & Message Board Support with Improved Model Diagnostics
• Support of Stranded/Solid Conductors Definition Mode for Single Cables in RapidTL GUI and Global Cables Library
• Extended Global Cable Library with Solid and Concentric Stranded Conductors Based on AWG Chart
• Advanced Visualization Options: Show/Hide Complete Shields, Individual Shield Layers, and Cables in 2D & 3D Viewers
• Include/Exclude of Complete Shield, Individual Shield Layers and Cables from Calculations
• 3D Visualization of Multi Cables with Twisting Options

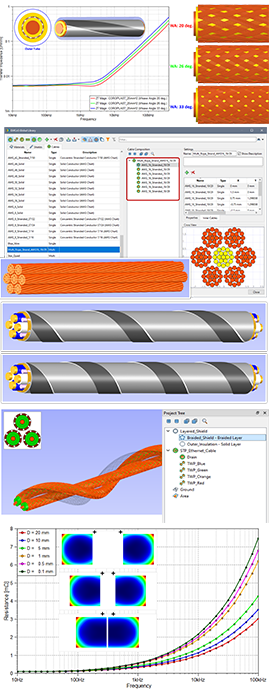

EMCoS RapidTL – Transfer Impedance Calculation in Virtual Triaxial Setup

• Enhanced Transfer Impedance Simulations with the Cable 3D PEEC Solver for Detailed Analysis of Shield Spirality Effects and Layer Rotation Orientation on Shielding Performance
• Interactive Helical Tape Wrap Visualization in 3D Viewer

EMCoS RapidTL – Cables 2D EMF Calculations

• Full Length Self and Mutual RLCG Matrix Extraction
• Net Names Definition for Inner Cable Cores, Shields, Individual Shield Filaments and Object Groups
• Objects Highlighting by Nets in 2D View Scene
• Results Recalculation Based on Cable Length Approximation in RLC Matrix Dialog

EMCoS RapidTL – Cables MTL Calculation Mode

• 2D Post-Processing Tools for Current, Voltage, and Port Parameters
• Enhanced Schematic Module for Definition of Arbitrary Cable Terminations

New Features in Automated Generation of Complex PCB Models with EMCoS PCBNgn

• Export PCB Nets to CAD Geometry
• Improved Import Options (Direct Access to Import Features without Nets, Import Features outside Profile Settings)
• Simultaneous Visualization of All PCB Layers
• Via Clusters Detection Tool
• Nets Editing Functionality (Cut and Delete Net Parts)
• 2D Viewer Enhancements: Rotate Operations (Left/Right) and Rectangular Selection Mode
• Information about Selected Component Model in Component Panel > Pins Section

New Features in Model Handling Operations

• Import Meshes from *.STL File Format
• Extended Automatic Mesh Stitching Operation (Automatic Stitching of Crossing Meshes and Submeshes)
• Import/Export of Calculation Task Settings for Faster Workflow Setup
• Expanded Frequency Distribution Controls in EM Analysis Type > TriD Solver (No / Auto / Core / Manual)
• Handling Impressed Current Sub-Segments Visualization in Tree View
• New Command to Update Circuit Element Values from Circuit Library to System Diagram
• Improved Import of PCBNgn Project into EMCoS Studio Environment

Magneticus – New Magnetostatic Field Solver

To enable modeling of interactions between ferromagnetic materials and permanent magnets, this new release introduces the efficient Magneticus solver, based on Surface Integral Equations (SIE).  It applies Fast Iterative Solvers (FIS) in combination with the Adaptive Cross Approximation (ACA) algorithm to achieve high computational efficiency.

New Features in EMCoS CM Choke Designer

• Support of Oval and Rectangular Chokes Modeling
• Oval and Rectangular Cores Definition with Uniform and Non-Uniform Plastic Cases
• Expanded Winding Configuration Options (Top, Left, Right, and Bottom Windings) for Oval and Rectangular Cores

New Features in EMCoS SRC3D (Source Reconstruction Tool)

• Support of Planar and Arbitrary Surface Scans
• Support of Multi-Frequency Scanned Data
• Automatic Generation of Near Field Source (NFS) around Reconstructed Dipoles Cloud for Integration into Simulation Workflows
• Flexible GUI for Input Parameters and SRC3D Solver Settings Definition

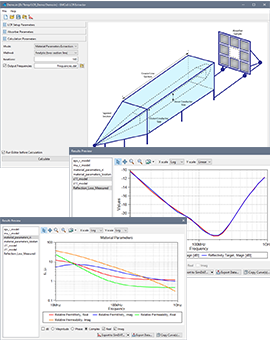

New EMCoS LCR Extractor (Material Parameters Extraction Tool)

• Material Parameter Extraction Using Low-Frequency Coaxial Reflectometer (LCR) Method
• Equivalent Material Modeling Designed to Reproduce the Behavior of Thin, Real Ferrite Absorbers
• Practical Approach to Substitute Real Thin Absorbers with Thick Dielectric Layers having Equivalent Parameters for MoM Simulation
• Flexible GUI for Absorber Parameters Definition and LCR Solver Settings Configuration
• Definition of Output Frequencies for Equivalent Materials Reconstruction

New EMCoS CAD Simplifier Tool (Simplification of Complex Housings)

• Integrated 3D Viewer and CAD Parts Tree with Intuitive Show/Hide and Invert Selection Options for Efficient Geometry Navigation
• Import Geometry from ACIS SAT/SAB, IGES, STEP, CATIA V4&V5, JT, NX, NASTRAN, PLMXML File Formats
• Automatic Skipping of Hidden and Minor Parts to Accelerate and Optimize the Simplification Process
• Copy/Paste of Visualization Meshes for Seamless Transfer to other EMCoS Tools (EMCoS Studio and ReMesh)
• Parallel Threading to Speed-up Geometry Simplification

ReMesh New Features and Improvements

• Discrete Geometry Import from *.STL File Format
• Extended Rod-to-Weld Conversion to Multi-Layered Surfaces
• Faster Separate Properties Operation Optimized for Large Mesh Models
• Materials Data Reading and Editing from NASTRAN Files

EMCoS SimDAT New Features and Improvements

• New Merge Curves Operation to Fill Gaps between Curves Regions
• Copy 2D Plots to SVG File
• Minor Improvements and User-Requests

EMCoS Solvers New Features and Improvements

• [TriD] – Support of ‘freq_distr = manual’ for Multipartition Mode
• [HybridMTL] – Support of New LTSpice Version (24 series)
• [TSReady] – Support MUMPS Solver in Windows Version of TSReady
• [TSReady] – DCR Probe Support
• [TSReady] – Support Matrix Reordering Algorithms for PARDISO Solver
• [TSReady] – Suppress Shorted Pins Warning Command
• Minor Improvements and User-Requests
