Annular Patch Antenna

Model Description

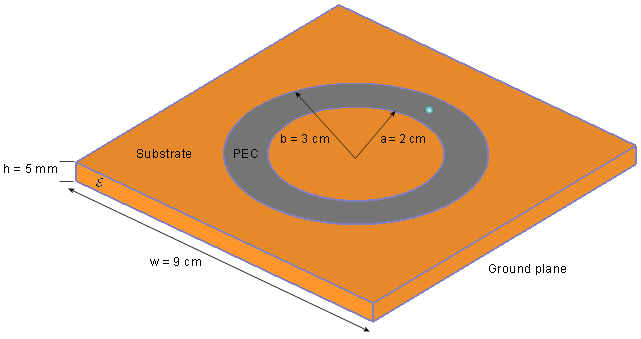

In this example annular patch antenna is considered. The structure is the annual patch (outer diameter 0.03 m, inner diameter 0.02 m) on a finite dielectric substrate (0.09 m X 0.09 m) with epsilon = 7.

Simulation Results

Directivity of Antenna (150 MHz)

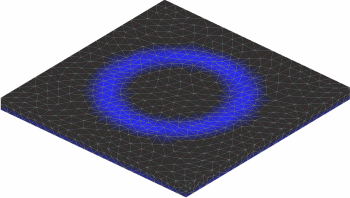

Current Distribution (150 MHz)
