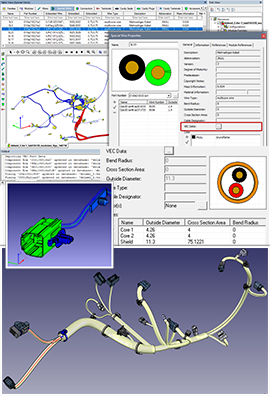

New Features in Harness Data Import & Handling

• Support of Harness Data Import from VEC v1.1.3 (Vehicle Electric Container)
• Update Existing KBL Harness Database with Part Master Data from VEC
• Import Part Master Data to Parts Library
• Parts Library and VEC Data Viewer
• Import Harness Configurations from KBL
• Support of KBL v2.5
• Import Harness from CATIA V5, Wire Table, CATIA V5 + Wire Table

New Features in KBL Configurator

• Simultaneous Configuration and Modules Extraction for Multiple Databases
• Export/Import/Save Operations for Multiple Datasets
• Modules Extraction Based on Configuration File

New Engine for Harness Data 3D Visualization

• Advanced Rendering Techniques
• Realistic Lighting and Customizable Color Schemes
• New ‘Treat B-spline Curves as Clamped Uniform B-splines’ Option for Better Handling of Segments Visualization
• Possibility to Visualize Segments with Real Diameter or Fixed Size
• Improved Visualization of Auto and User-Defined Labels
• Improved Ruler to Measure Distance between Model Objects

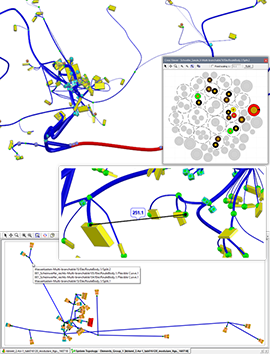

New Features in Harness Data Navigation

• Improved Navigation in Table and Tree Views
• Extended Search Engine
• Extended Segments Cross Section Viewers for Data Groups
• Topology View for Data Groups

New Features in Model Handling Operations

• Support of Transformation Operations for Meshes (Translate, Rotate, Mirror and Scale)
• Advanced Distance Measurement Tool for Wires (Route Length, Common Length, Length of Parallel or Common Segments, Total Length)
• Distance Measurement between Harness Objects (Segment – Segment, Connector – Connector, Fixing – Terminal, etc.)

Improvements in Reporting Engine

Report generation has been significantly improved with enhanced speed and efficiency, and can now be performed independently of whether MS Excel is installed on the user’s machine.

New Features in Expert System Engine

• Improved Rule Editor and CLIPS Functions Assistant
• Extended List of Built-In CLIPS Functions
• Encryption/Decryption of Sensitive CLIPS Rules
• Support of Output > Table Functions
